Detailed

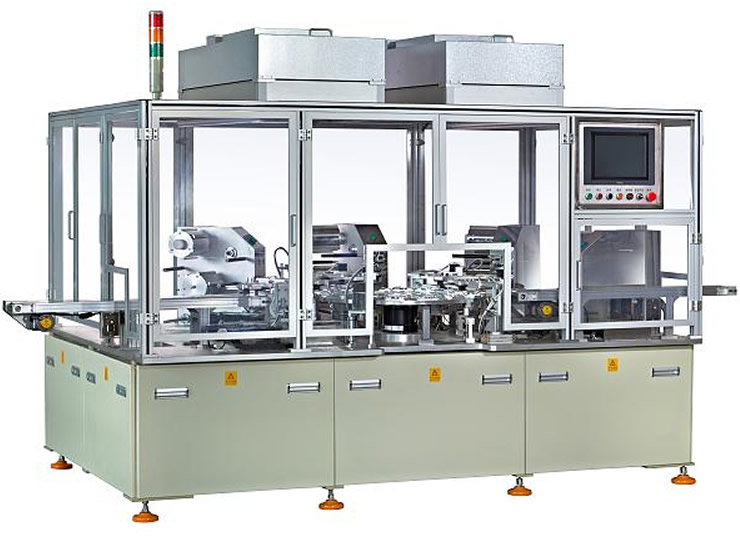

Backlight automatic assembly machine
Product Details:
Application scope
Suitable for small backlight module in accordance with the production process requirements in the fixture tray automatically assembled.
Features
Backlash TRAY-type feeder automatic feeding, automatic cleaning, automatic tear film, automatic CCD correction, special backlight reserved manual feeding belt, can be adapted to thin backlit, no border backlight, back with tape paper backlight, high efficiency Good;
LCD artificial or connection belt feeding can also be optional TRAY on the feeding machine, automatic cleaning, automatic tear film, automatic CCD correction, high efficiency and good versatility;
LCD and backlight using visual automatic positioning, high precision and good stability;
Backlit platform universal design, can adapt to different sizes, the back of a sticker and other adhesive tape;
Backlight tear film, assembly area were in addition to static electricity, anti-static dust effect is good;
After the assembly has a complex pressure function, can effectively avoid the assembly when the backlight and the glass is not a solid problem;
Touch screen operation PLC control, tuning parameters of the formula, recipe storage is greater than 150 groups, transfer machine, product easy to change.
Technical Parameters
project | specification | project | specification |
LCD尺寸 | MAX：7”120#170）mm | Equipment capacity | 900-1200pcs/h |
LCD總厚度 | 0.3-2.0mm | Power supply pressure | AC2207/50Hz0.7Mpa(Max.) |
Backlight size | Max:7”(125#180)mm | Machine dimensions | 2850*1250*1750mm（L*W*H）/1800KG |
· About sale
· One year warranty, lifetime maintenance (except for vulnerable parts)
To create brand-name enterprises, improve corporate reputation and establish a corporate image, we in the "all the pursuit of high quality, customer satisfaction for the purpose of" the spirit of "the most preferential prices, the most attentive service, the most reliable product quality" principle To your solemn promise:
First, the product quality commitment:
1, the product manufacturing and testing are quality records and testing information.
2, the product performance testing, we invite users to visit the whole process of the product, the full performance of the bolt check, until the product is confirmed and then qualified shipping.
Second, the product price commitment:
1, in order to ensure high reliability and advanced products, components are selected domestic or international quality brand-name products.
2, in the same competitive conditions, our company is not to reduce the technical performance of products, change the cost of product components on the basis of,
